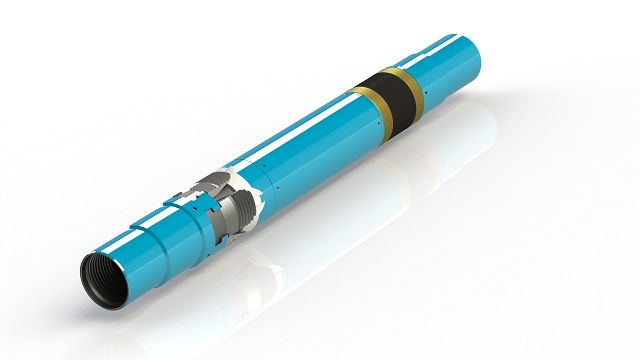

HP Anchor Packer

The HP anchor packer is used as the bottom packer of the fracturing string to stabilize the whole string during staged fracturing operations. With the bi-directional slips that provide high gripping force against the wellbore, the packer is rated to 10,000psi pressure grade, and could be used in both open and cased holes.

The HP anchor packer could be set by pressuring up the tubing, after the packer is set, an internal locking ring keeps the hydraulic setting pressure in place to ensure the packing force. The elastomer element has anti-extrusion rings installed on the ends to prevent severe deformations.

The packer has a full wellbore ID that allows a higher fracturing rate and path for future well intervention. Alloy steel is used on the packer by default and anti-corrosion materials could be selected as an option.
